Ceiling Fan Winding Machine – Kij 117

Link Copied

30,000.00 / piece

Edit

Business Type	Manufacturer, Exporter, Supplier, Retailer
Wire Diameter Capacity	27-38 SWG
Winding Speed	1440 RPM
Spindle Configuration	Single Spindle
Click to view more

Product Details

Wire Tension Control

Automatic Tension Control

Brand

KIJ Machinery

Features

Rotate Fastly, Fine Finish, Easy To Install, Best Quality

Power

200w

Power Source

Electric

Usage

Ceiling fan Stator Rewinding

Product Code

KIJ117

Payment Terms

Other

Delivery Time

3-7 Days

Packaging Details

Carton Box

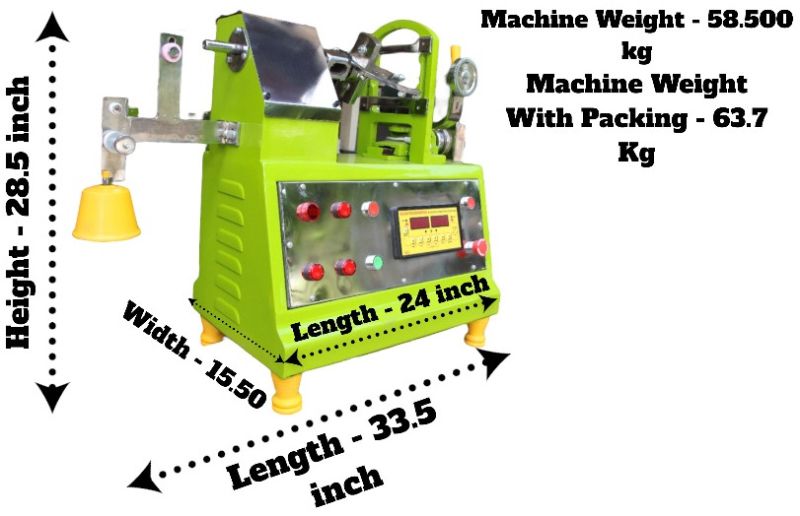

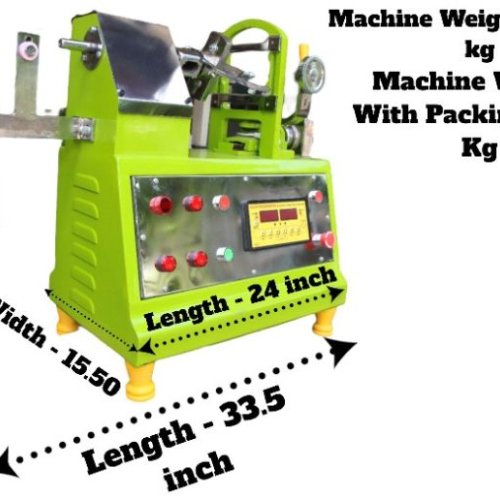

Electric Ceiling Fan Winding Machine – KIJ 117

Home Delivery (Company will be responsible for delivering the machine to your home)
Master die or multi die is optional in this, you can choose any one.
With this you will also get steel die which has 15 years warranty against polishing and rusting.
In this machine you get digital counter meter which has 7 years warranty.
In this you get pure copper motor.
Speed – 1440 RPM
Winding Type – Aluminum & Copper
Motor – ¼ HP (186.5 Watts), 1 Year Warranty
Wire – 28 – 38 SWG
Volt – 220-240V
Wire Direction – Clock wise, Anti-Clock wise
Weight – 55 kg
Dimension – Length – 36 cm, Width – 70 cm, Height – 64 cm
Kisan Engineering is the only company in India that manufactures all the parts of the machine itself. You can also visit the company and buy the product.
After buying the machine, if you need any information to operate it, you can call the company’s helpline number.
Production: 30-40 Stators/Day
SUITABLE STATORS : 12, 14, 16, 18, old/new and all sizes stators
ACCESSORIES : 12, 14, 16 Multi Die Set/1 Set Master Die Set, Lamda Patti, Reel Cover, Wire Keep
COLOR : Red (Powder Coated Paint)
FEATURES : FIXED DIE SYSTEM, ELECTROMAGNETIC BRAKE
