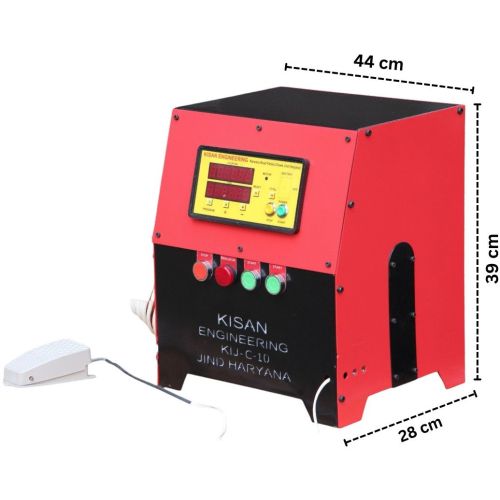

Electric Coil Winding Machine Kij C10

Link Copied

14,000.00 / piece

Edit

Business Type	Manufacturer, Exporter, Retailer
Wire Diameter Capacity	22-35 SWG
Winding Speed	900 RPM
Spindle Configuration	Single Spindle
Click to view more

Product Details

Wire Tension Control

Automatic Tension Control

Applications

Motor Coils, Industrial

Brand

Kisan Engineering,KIJ Machinery

Country of Origin

220 V, 220V

Material

Mild Steel

Condition

New

Driven Type

Electric

Product Code

KIJ-C10

Payment Terms

Other

Delivery Time

3-7 Days

Packaging Details

Carton Box

Electric Coil Winding Machine – KIJ C10 Model by Kisan Engineering is perfect for Tullu pump motor and motor coil winding.

Motor Max Speed : 900 RPM
Motor – 1/4 HP (180 Watts) , Warranty – 1 Year
Meter Reading Range – 1-9999 (4 Digit)
Control: Pedal & Button
Wire: 22-35 Gauge
Coil Upto 5 HP Motor
Meter Warranty – 1 Year
WEIGHT – 20 kg
FEATURES – 9 Coil Group Program, Adjustable Coil Position Left/Right
ACCESSORIES – Farma, Patti, Wire Tensioner
USAGE : Make coils for 3 Phase, Single Phase, Cooler, Farata Fan, Tullu Pump, Table Fan, Madhani, etc.
