Ceiling Fan Winding & Coil Making Machine with Speed Control - Kij 125

Link Copied

49,000.00 / piece

Edit

Business Type	Manufacturer, Exporter, Supplier, Retailer
Wire Diameter Capacity	27-38 SWG
Winding Speed	100-2500 RPM
Spindle Configuration	Single Spindle
Click to view more

Product Details

Wire Tension Control

Automatic Tension Control

Applications

Motor Coils

Brand

KIJ Machinery

Material

Mild Steel

Shape

Rectangular

Condition

New

Finishing

Powder Coated

Driven Type

Electric

Product Code

KIJ125

Payment Terms

Other

Delivery Time

3-7 Days

Packaging Details

Carton Box

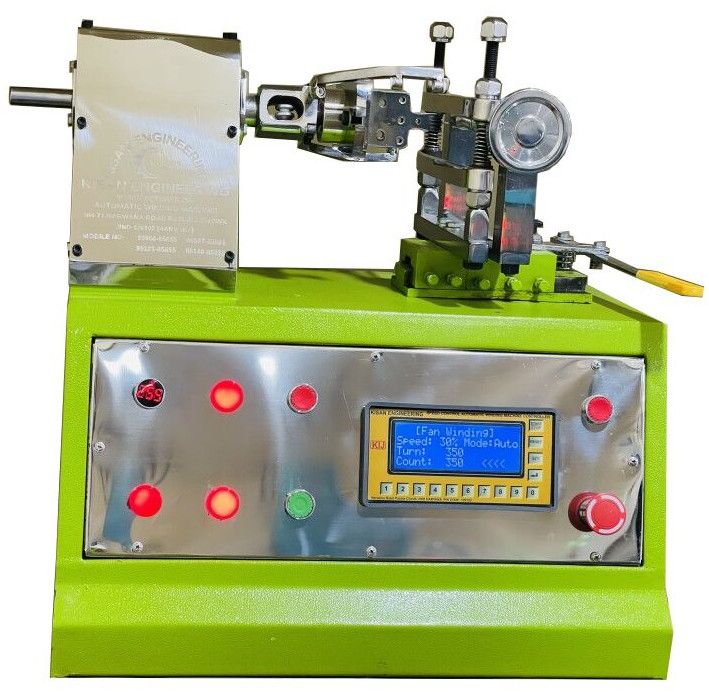

Ceiling Fan Winding and Coil Making Machine – KIJ 125

Home Delivery (Company will be responsible for delivering the machine to your home)
2 in 1 Model Machine (Fan Winding + Coil Making)
In this you can make coil up to 5 HP
It has a computerized speed control system. With which you can set the speed of the machine according to your convenience.
In this model you can easily run wire up to 28-38 swg.
You can run this machine from 100 to 2000 rpm as per your convenience.
In this you have been given programming from 1 to 10. You can set the program from 1 to 10 according to the groove of your frame. You do not have to change the turn again and again.
Winding Type – Aluminum & Copper
Production Capacity: 50-60 Stators/Day
Die – Master Die, High Speed, Multi Die (Optional)
Plates – Back Plate, Panel Plate, Box Plate, Main Plate (All Stainless Steel)
Volt – 220-240V
Motor – 1/4 HP (186.5 Watts), 1 Year Warranty
Speed – 1440 RPM
Wire Direction – Clock wise, Anti-Clock wise
Dimension – L*B*H = 42*68*64 cm (16.54 × 26.77 × 25.20 inches)
Weight : 60 kg
